Verification of IP ratings relies on standardized atmospheric conditions, non-harmful ingress acceptance criteria, and the final manufacturer’s responsibility for the completed product. All tests specified in IEC 60529 are type tests. To ensure repeatability, they should be carried out under standard atmospheric conditions, unless otherwise specified, including a temperature range of 15 °C to 35…

Optional additional letters (A-D) specify enhanced human access protection, while supplementary letters (H, M, S, W) define critical testing conditions and intended application. The IP Code allows for the inclusion of two sets of optional letters that modify or add context to the core protection rating. Additional Letters (A, B, C, D): Protection against access…

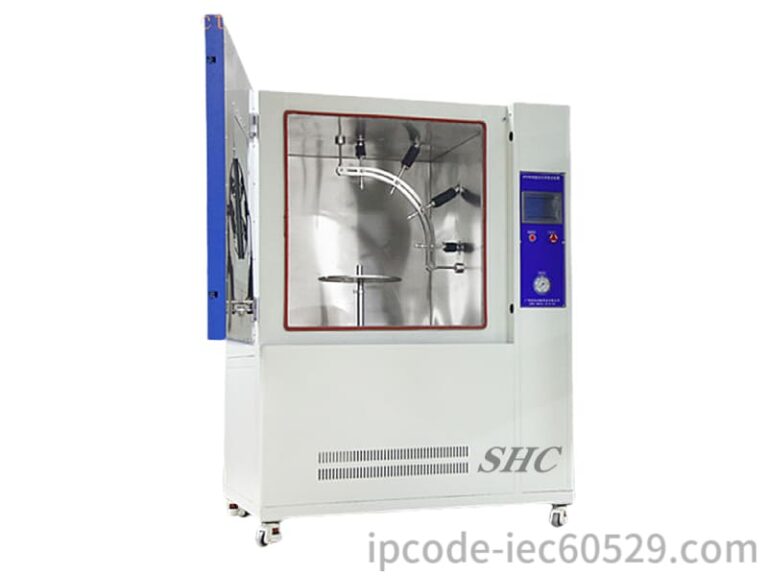

Second Characteristic Numeral 9: High Pressure, High Temperature Jet Test The degree of protection IPX9, introduced by Amendment 2, is specific to enclosures resisting high pressure and temperature water jets. Water projected from any direction under these extreme conditions must not have harmful effects. The test procedure involves a specialized fan jet nozzle (Figures 7,…

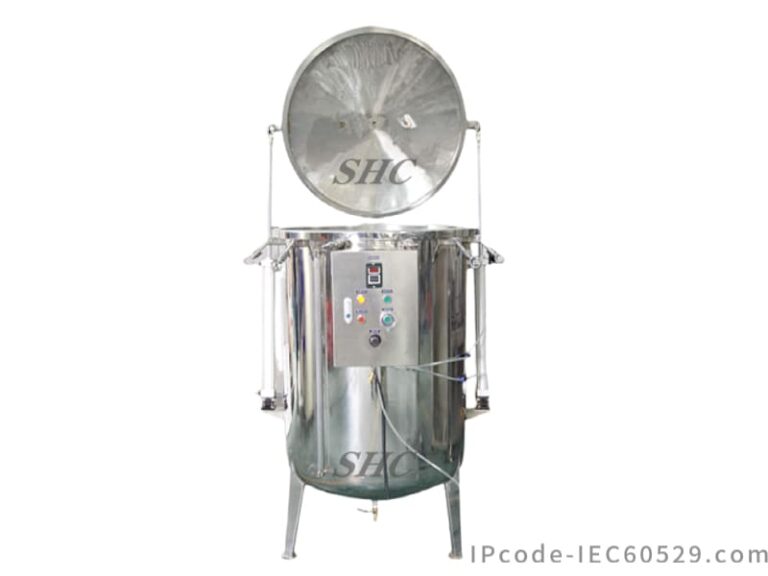

Second Characteristic Numeral 7 and 8: Immersion Protection and Multiple The degrees of protection IPX7 and IPX8 address the capability of an enclosure to withstand the static pressure and saturation effects of being submerged in water. It is critical to understand the rule governing versatility: an enclosure designated IPX9 only is considered unsuitable for exposure…

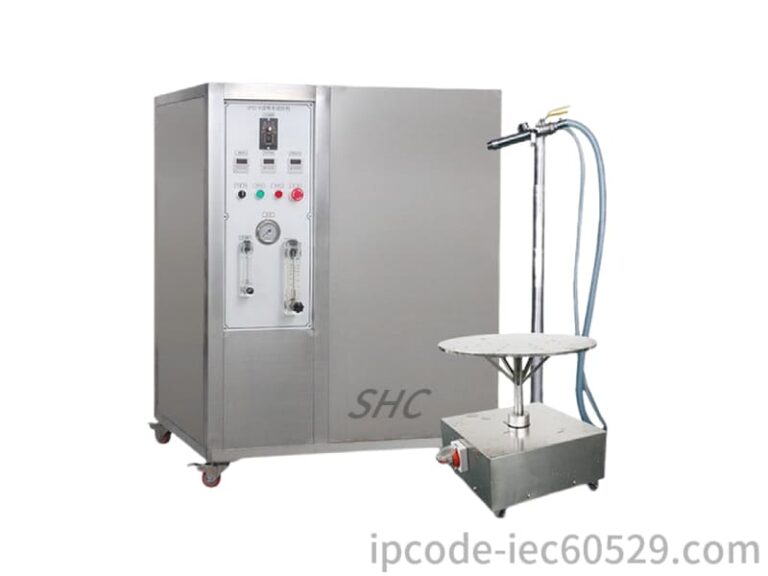

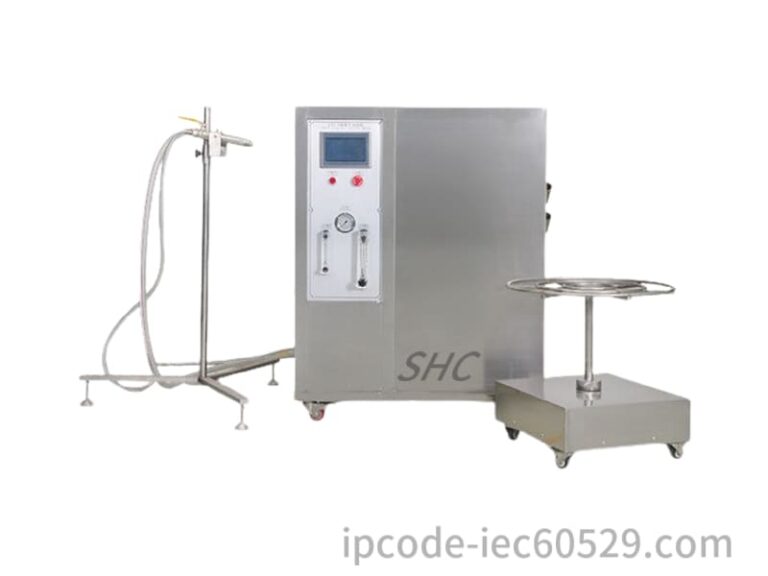

Second Characteristic Numeral 5 and 6: Pressurized Water Jet Tests Degrees IPX5 and IPX6 define the enclosure’s capability to withstand forceful water jets, simulating conditions like hosing down. Both tests utilize a standard hose nozzle (Figure 6) and require spraying the enclosure from all practicable directions. The water pressure is adjusted solely to achieve the…

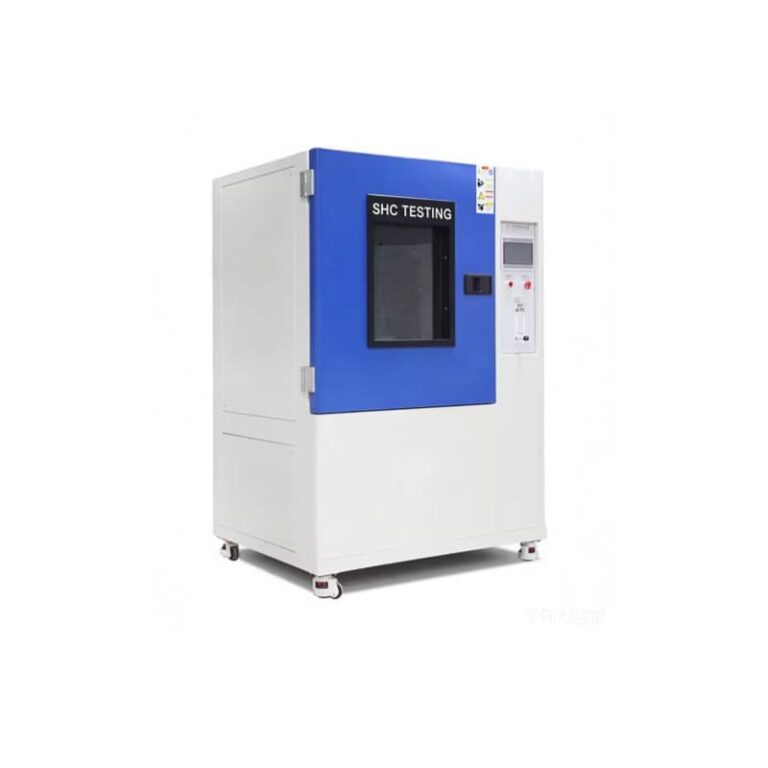

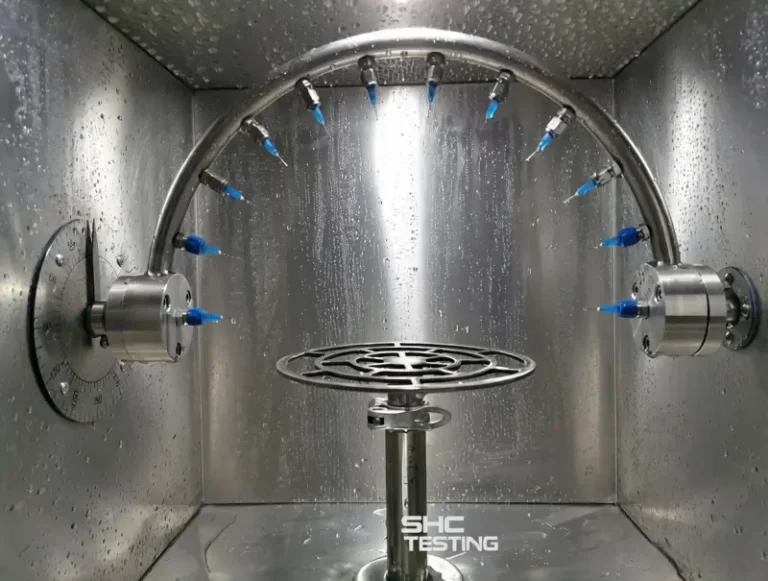

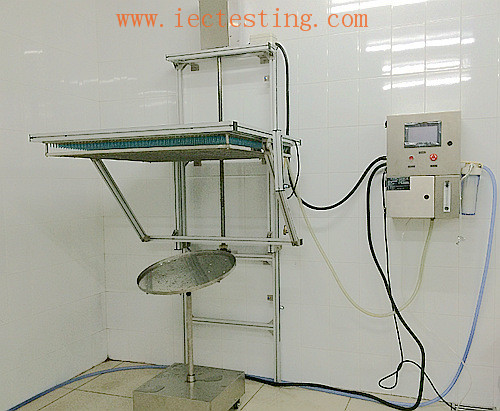

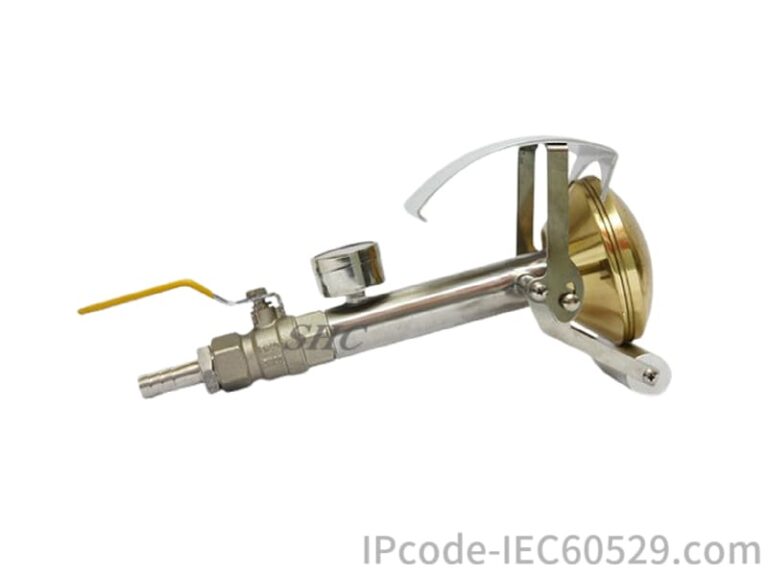

Water protection levels 1 through 4 define resistance to low-velocity water, ranging from simple vertical dripping (IPX1) to full 360-degree splashing (IPX4). The second characteristic numeral indicates protection against harmful effects due to water ingress, tested with fresh water. Lower levels focus on drops and low-pressure projection. For all these tests, the acceptance condition is…

IP5X mandates limited, harmless dust ingress while IP6X requires absolute dust-tightness, both verified using standardized vacuum and duration tests. The highest two degrees of the first characteristic numeral specifically address the penetration of dust. These levels require specialized testing using a dust chamber (Figure 2) and finely sifted talcum powder. The testing procedure depends on…

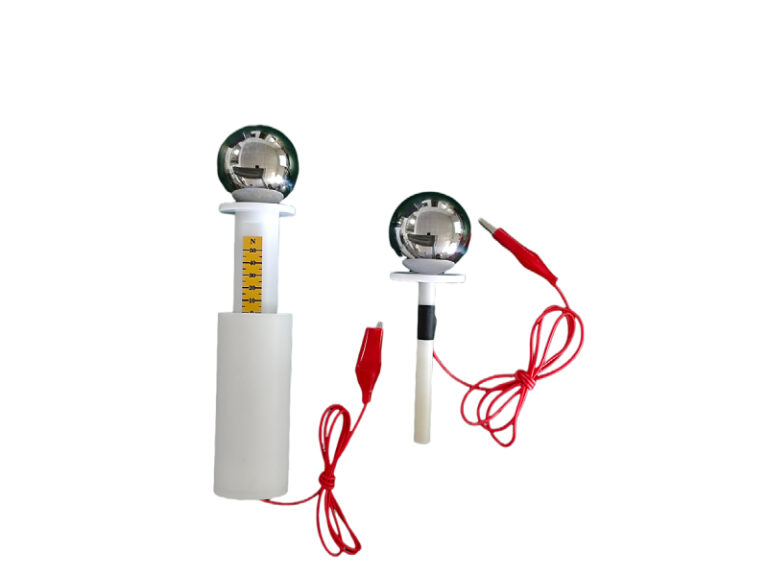

The first characteristic numeral (1 through 4) always implies the satisfaction of two conditions simultaneously: protection of persons against access to hazardous parts, and protection of the equipment against the ingress of solid foreign objects. This dual role ensures both operational safety and physical integrity against external contamination. The definitions for protection against access rely…

The degree of protection provided by an enclosure is designated by the IP Code in a specific arrangement consisting of up to five parts: If a characteristic numeral is not required to be specified, it must be replaced by the letter “X” (“XX” if both are omitted). For example, IPX5 means the protection against solids…
